VX4
Please note that the maximum range of the e-scooter is determined under ideal conditions. These include 20-25 °C outside temperature, 75 kg rider weight, flat route, constant riding style, little stop and go, Eco riding mode at 20 km/h, 3.0 bar tire pressure. In practical use, the more you deviate from the ideal conditions, the more the actual range may vary.
VX4
GT: 100 km
Hauptlager
Industrieweg 32
4852 Rothrist
Switzerland
Free shipping
24 months guarantee
Service Center in Rothrist (Canton AG)

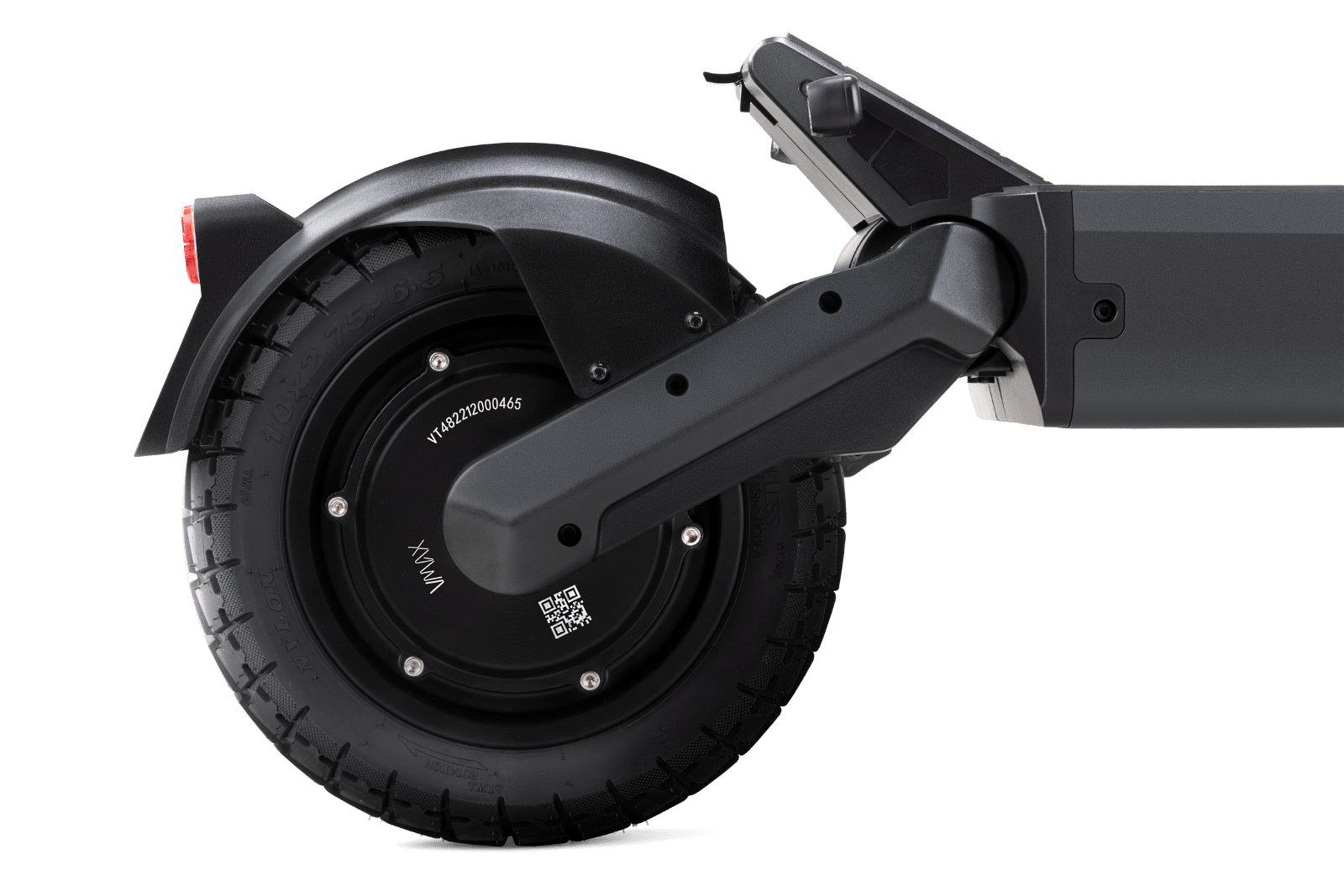

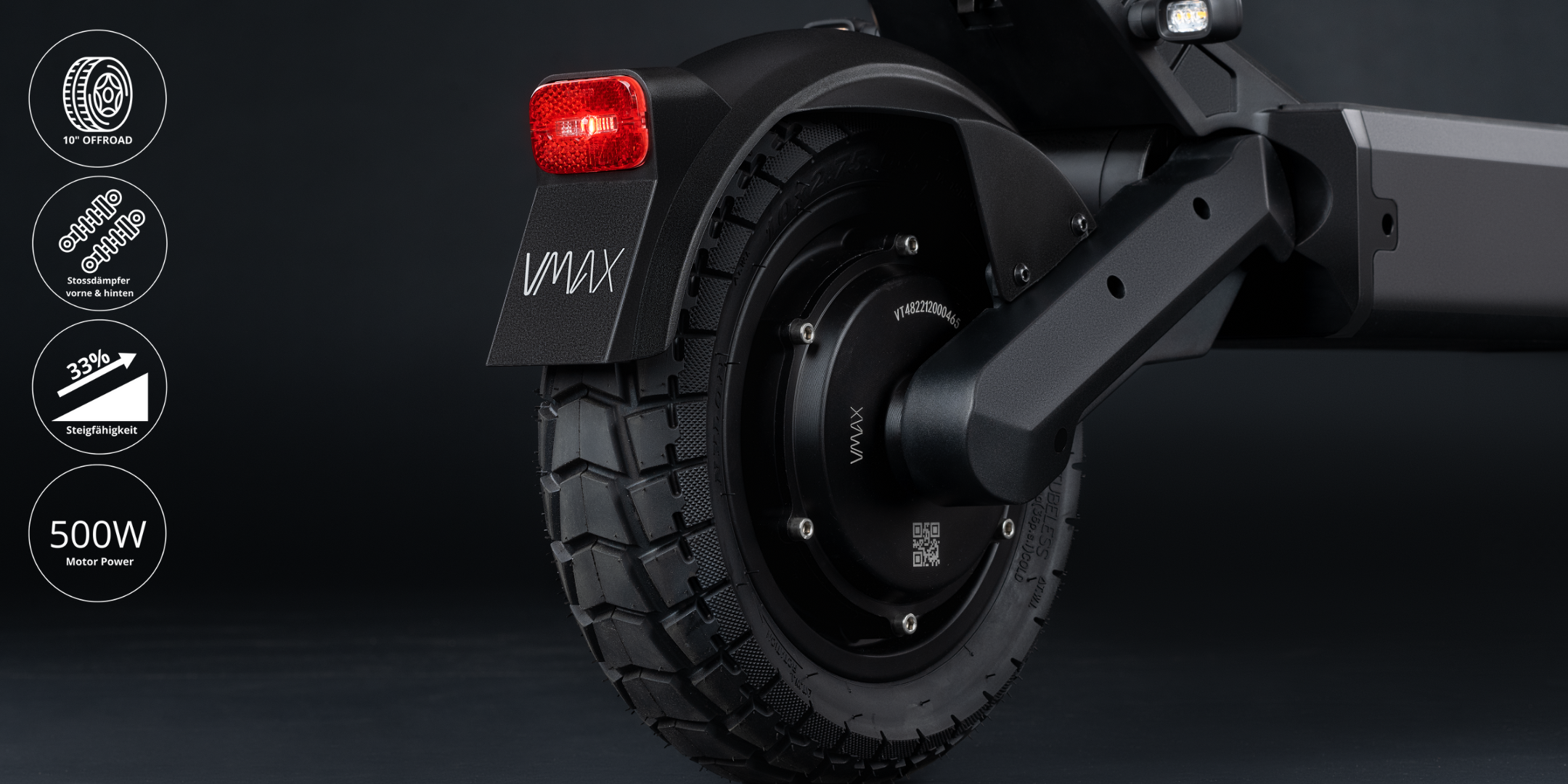

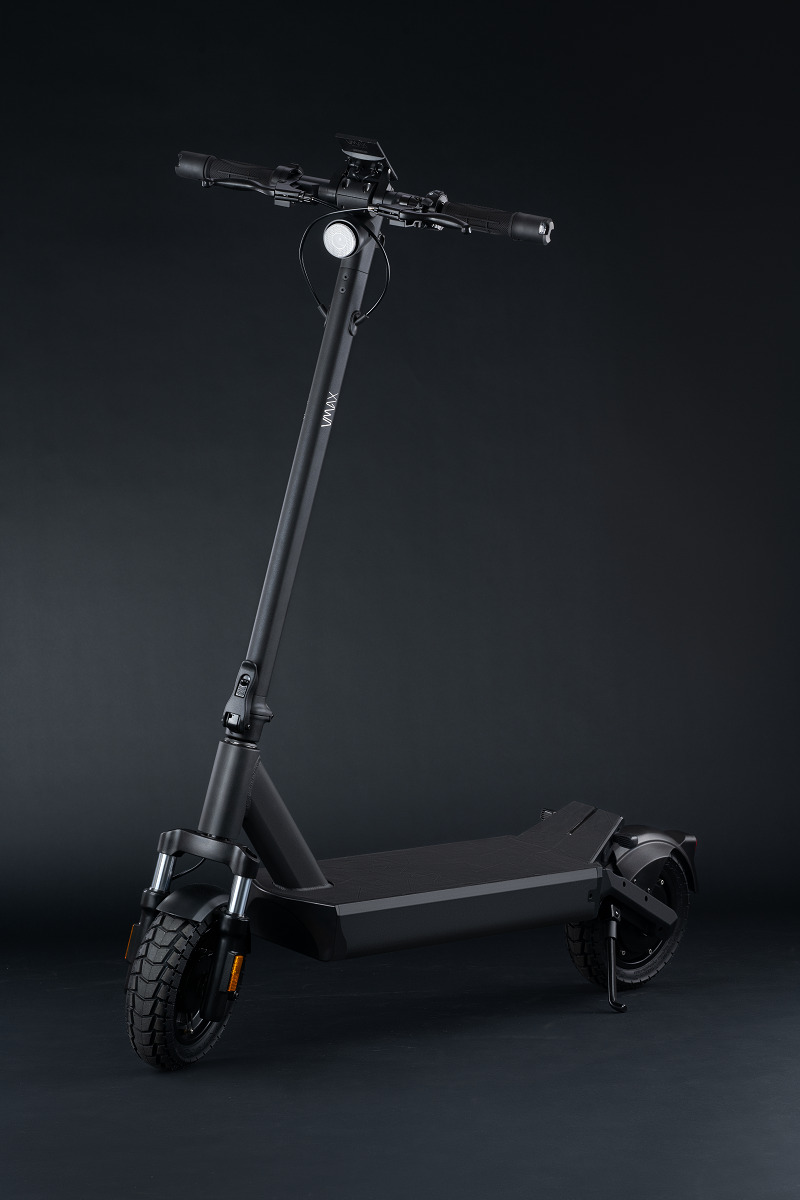

The VMAX VX4 impresses with its combination of power, comfort and range. Its powerful 500-watt motor with up to 1,600 watts of peak power provides impressive propulsion, even on steep climbs of up to 33%. Thanks to the dual front and rear suspension, the ride remains pleasantly smooth and controlled even on uneven terrain. With a range of up to 100 km, the VX4 is perfect for longer tours and daily commutes - reliable, robust and designed for maximum riding pleasure.
| Weight: | 27.4 kg (LT) / 28.6 kg (ST) / 29.0 kg (GT) |
| Product standing: | 1307 × 584 × 1220 mm |
| Product folded: | 570 × 584 x 1220 mm |
| Footboard: | 690×215mm |
| Front tire size: | 10" Tubeless (Offroad) |
| Rear tire size: | 10" Tubeless (Offroad) |
| Handlebar height from footboard: | 1020mm |
| IP degree of protection: | X6 |
| Material: | Aluminum |

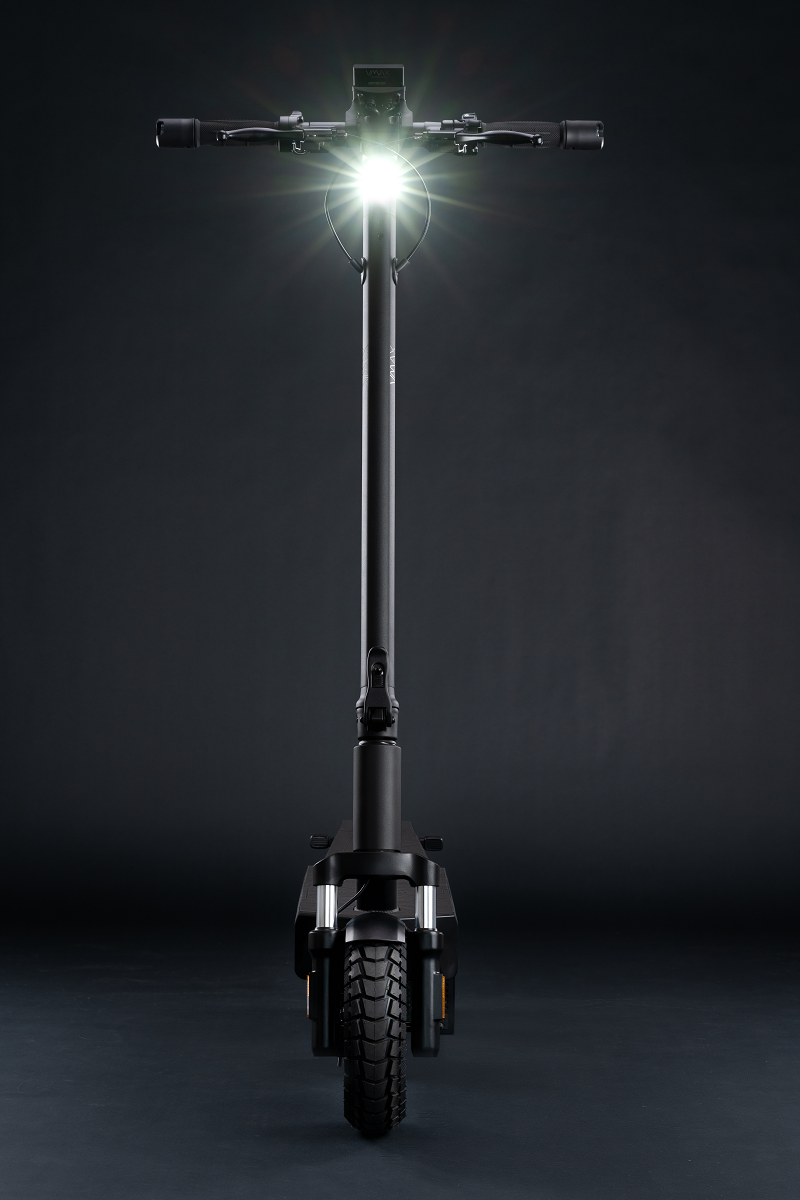

| Light: | 60 LUX front light with double cone + rear light with brake light |
| Front brake system: | Drum brake |
| Rear brake system: | Electronic recuperation |
| Brake lever: | 2 separate rear and front brakes |
| Suspension: | front & rear |
| Turn signals: | front & rear |
| Maximum speed: | 20 km/h |
| Climbing ability: | Up to 33% |
| Maximum load: | 150 kg |
| Battery: | 48V 13'000 mAh (LT) / 48V 18'200 mAh (ST) / 48V 23'200 mAh (GT) |
| Charging time: | 6.5h (LT) / 9h (ST) / 12h (GT) |
Assembly instructions and tools
VMAX Commuting Bag
VMAX charger
Valve access extension
Safety First

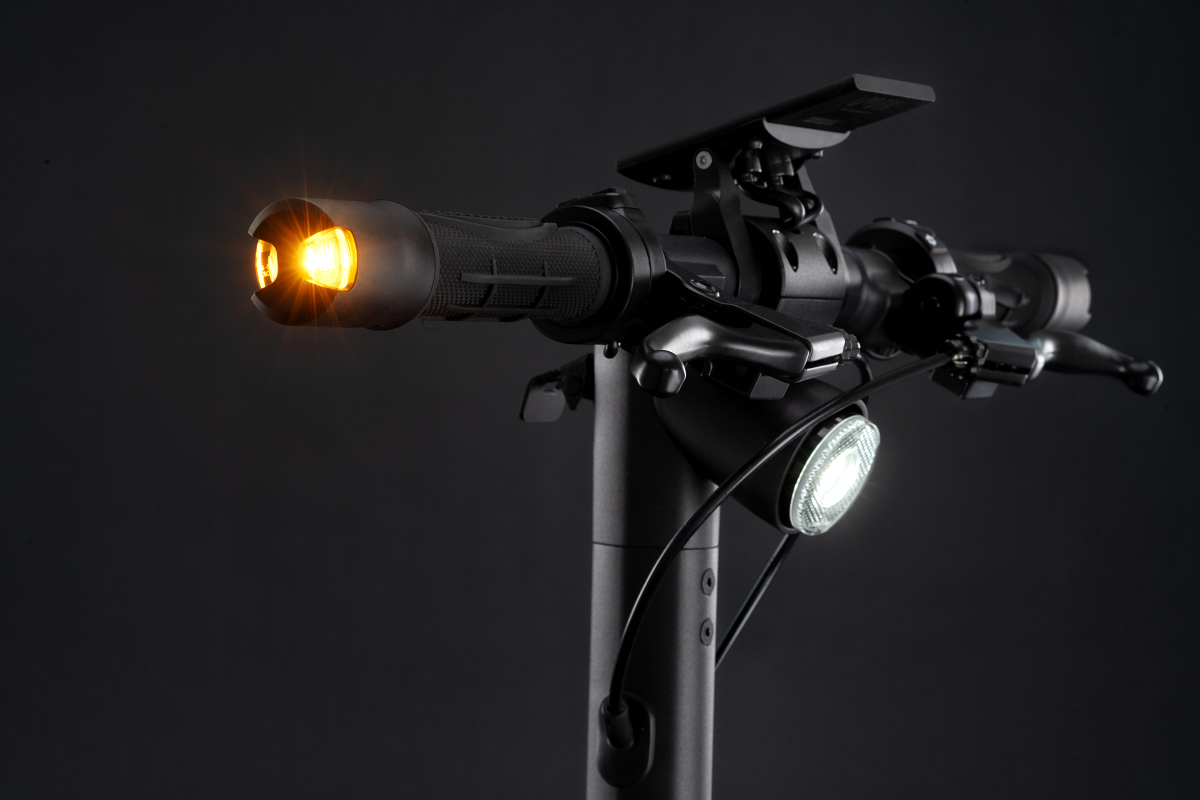

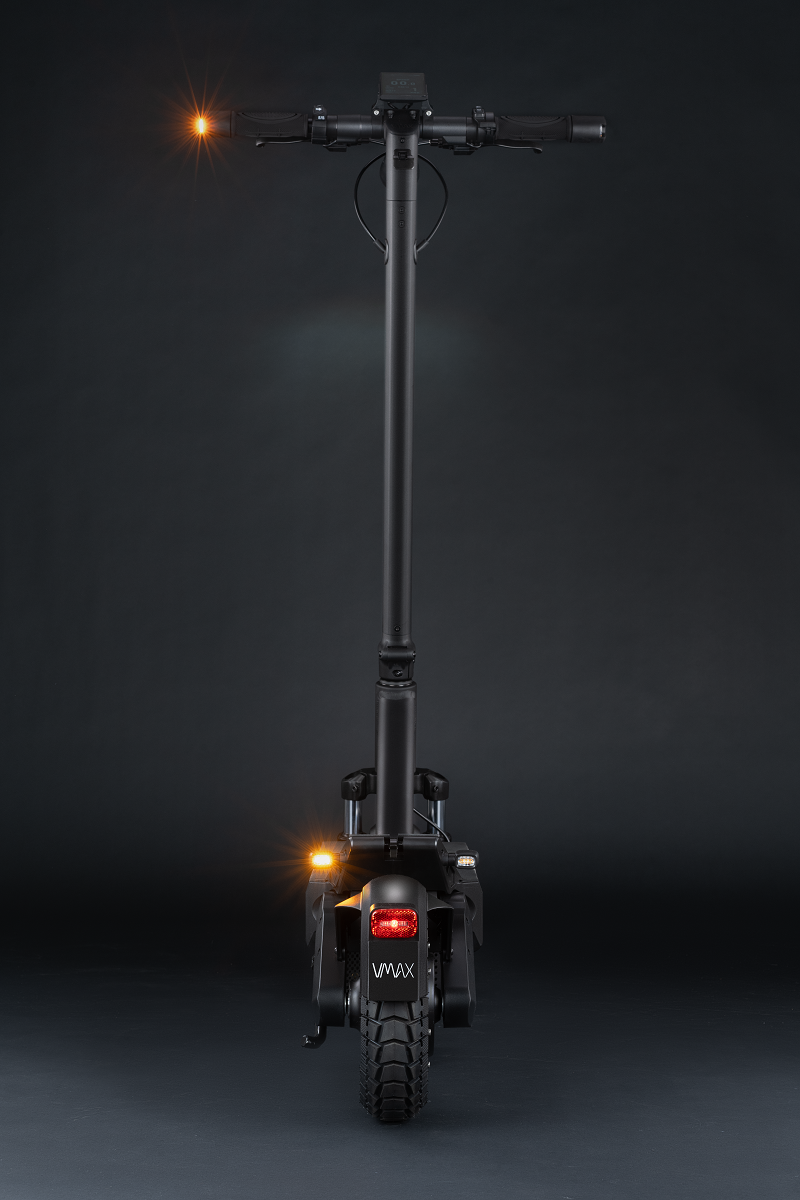

The built-in indicators at the front and rear ensure maximum safety on the road and allow you to easily indicate changes of direction.
Suspension

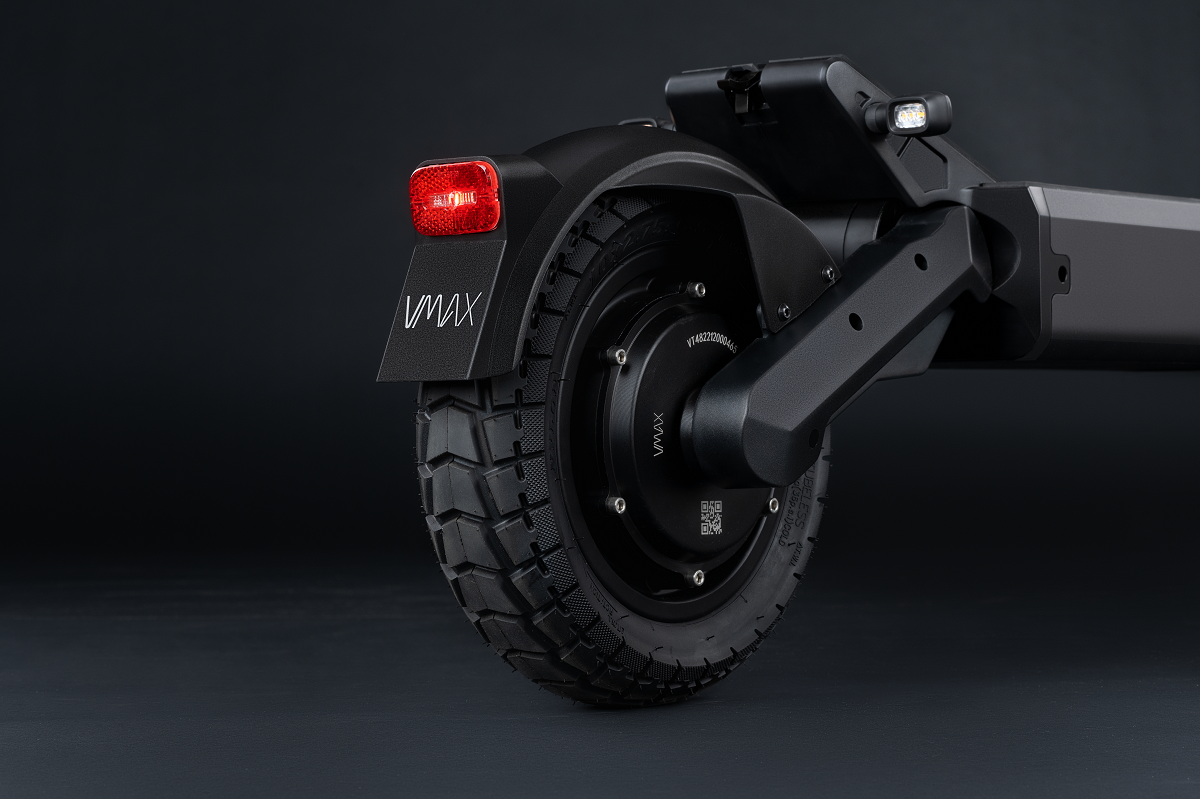

The front suspension fork enables a suspension travel of up to 5 cm and, together with the rear swing suspension, ensures a first-class riding experience - regardless of the surface.
Display
Our new display generation impresses with a clearly designed 3.97" TFT LCD color display, a PIN code lock, very good readability and a robust metal housing. In addition, the smartphone can be charged via a USB socket below the left-hand control element.
